Automatic Mexican Tortilla Making Machine for Bread Flour Cake Press Commercial Large Pancake Machine
This machine mainly make flat bread, such as Arabic bread, pita bread,tortilla bread, round flat pancakes,lavash cakes etc, The
diameter and thickness of the finished product can be adjusted ,it is electric heating and PLC control system,baking oven
temperature is uniform.
Features:
1. This machine is a mechanics numerical adjustment system with low noise,high efficiency,low energy consumption,simple operation, saving time and effort.
2. Diameter (10-40 cm) thickness ( ≥0.3 mm)
Machine Main Features:
1. Easy demoulding, product rejection rate is low, the production cost is low
2. Reduce labor costs and improve work efficiency
3. Running in a high automatization and intellectualization,no pollution.
4. Automatic conveying of dough ball to haydraulic heating forming chember.
5. Hydraulic pressing system perfectly do pressing of dough ball into tortill skin.
6. Baking oven conveyor belt is made of PTFE which prevent tortila skin from sticking on conveyor belt.
| Model | BP400-2 (Components:Head unit •Press •Oven •Cooler) |
| Heating method | Gas / Electric |
| Plate size(mm) | 350*650 |
| Power supply | 28kw |
| Eletrical consumption | 3kW/H |
| Gas consumption | 3.30 m³/h - Natural Gas
2.6 kg/h - LP Gas |
| Tortilla diameter(mm) | 50-300 |
| Tortilla per hour | 800-1300 Pcs/H |
| Dimension (mm) | 5000*930*1490 |
| Weight(kg) | 800kg |
Smart PLC ControlSystem
Mechatronics numerical control adjustment systemTemperature adjustable;
Bread size adjustable;
Recipe storage function

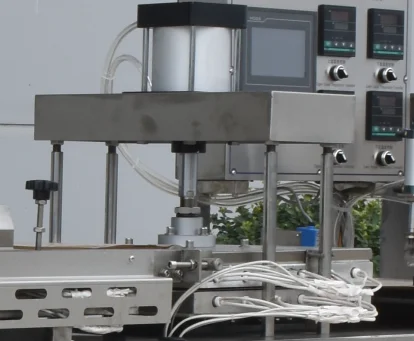

Hot Pressing Forming System
Durable electre heater well - Formed Thickness adjsuable

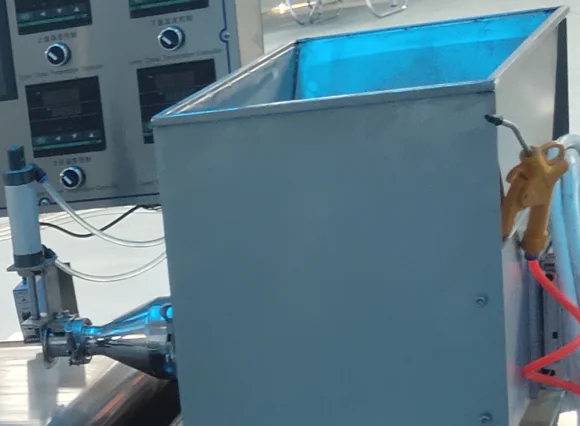

High Volume Dough Feeding Port
10-15 KG dough one time Non-Stick Roller more efficient
High Efficiency Cooling System
Simple mechanism Good cooling effect
Baking Oven system
Electric heating
Uniform Baking temperature;
Good preservation

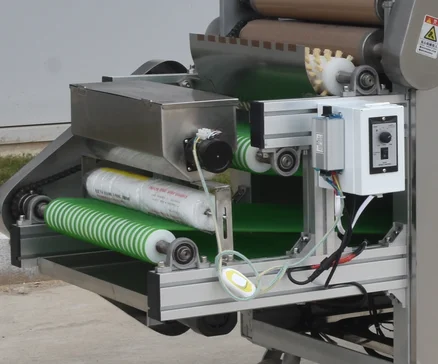

High Precision Dough Cutting System
Big feeding port for 10-15kg dough；High precision divided;
Customized manufactured of one bread, two bread or three breads output one time
